LF100LA

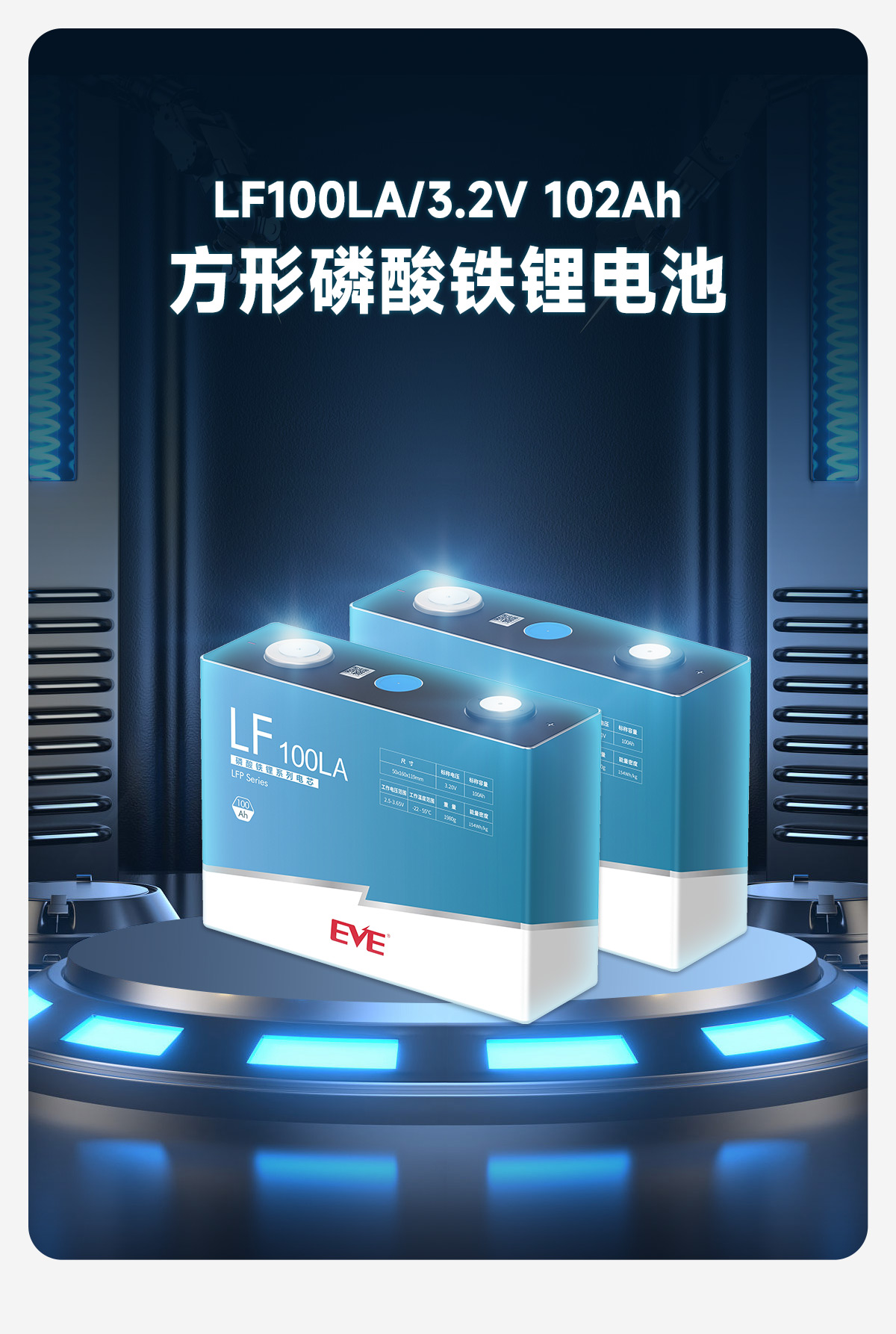

EVE亿纬锂能LF100LA方形磷酸铁锂电池3.2V储能电池100Ah电力储能通信储能通信基站
- 电芯型号: LF100LA
- 标称容量: 102Ah
- 标称电压: 3.2V
- 数据来源: 亿纬锂能实验室

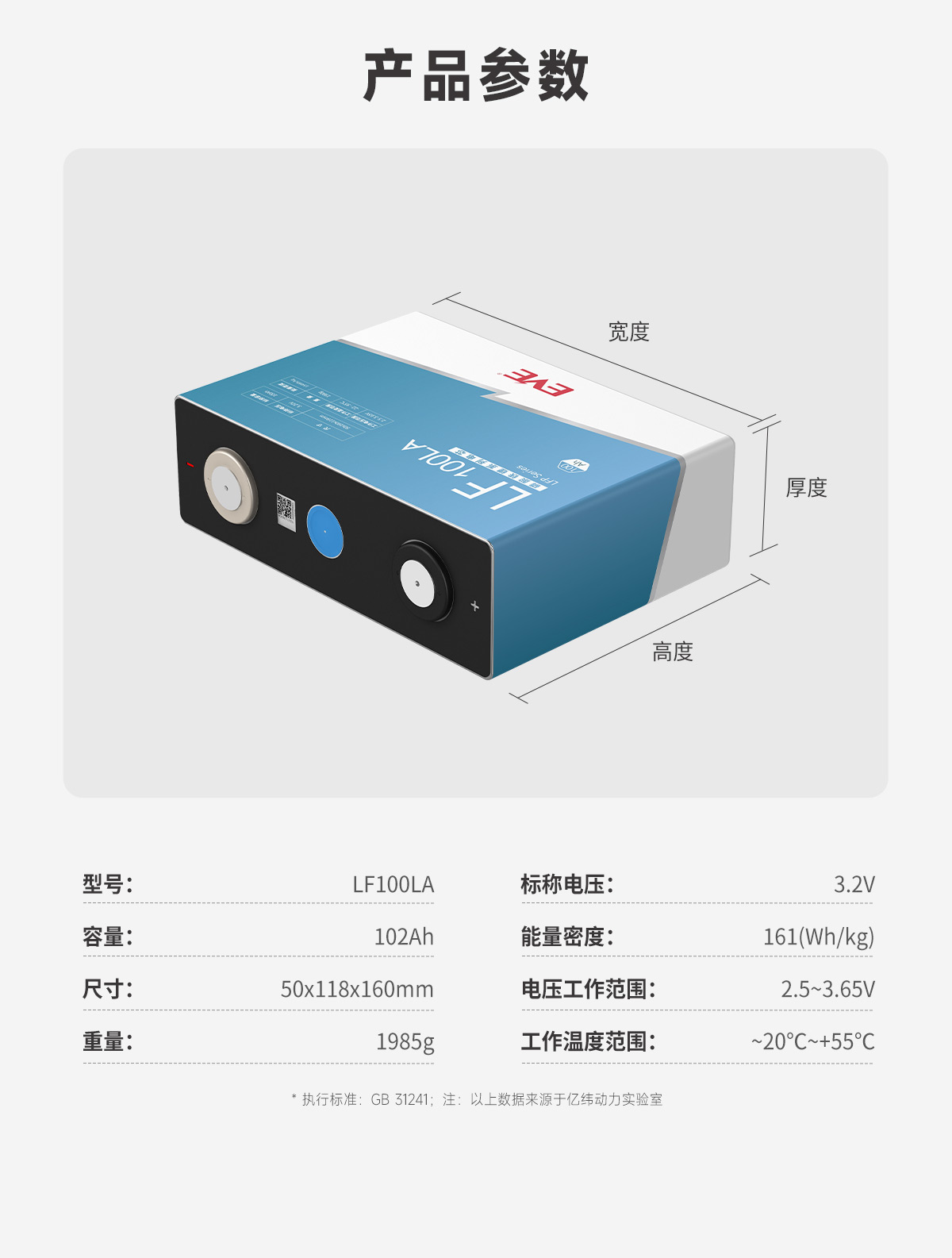

规格参数 |
标称电压(V) |
3.2V
|
标称容量 |
102Ah
|

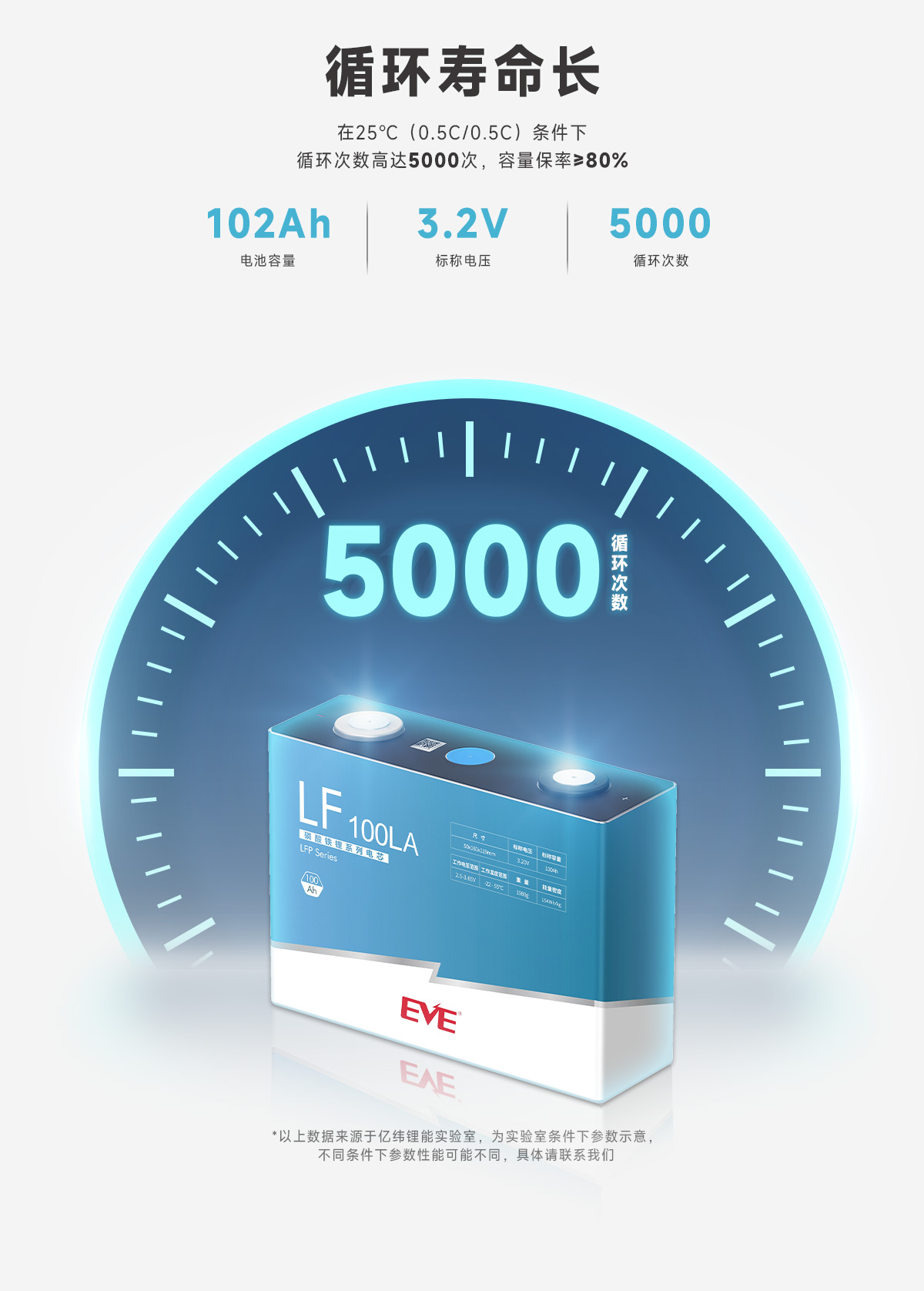

循环次数 |
5000次
|
使用范围 |

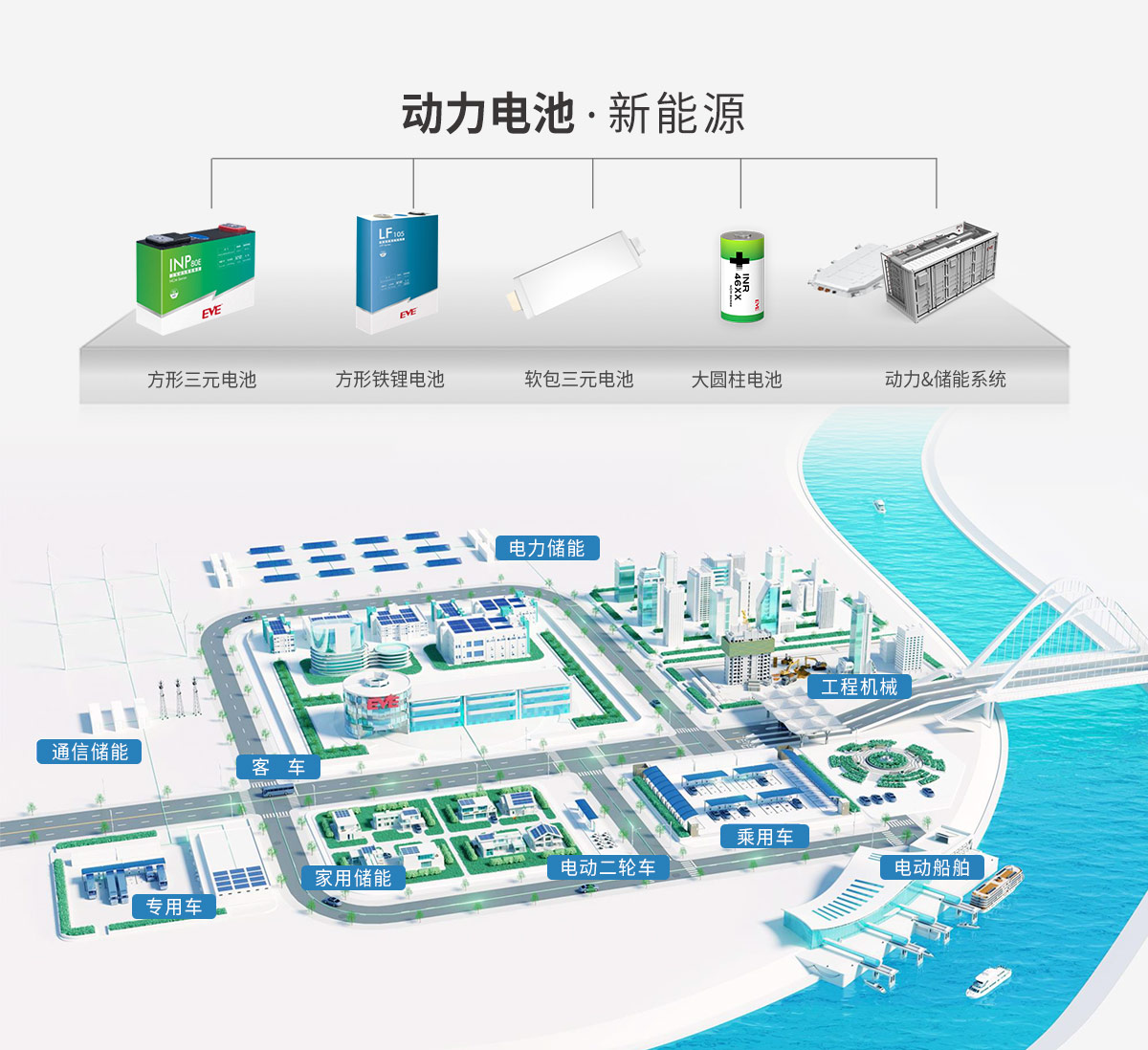

新能源汽车、船用、通讯储能
|
充电电压(V) |
3.65V
|
放电电压 |
2.5V
|
充电工作温度(℃) |
0~65℃
|
放电工作温度(℃) |
-20~65℃
|
重量(g) |
1985±100g
|
产品尺寸(mm) |
高*宽*长=118.5±0.5mm*50.1±0.5mm*160.0±0.8mm
|
型号 |
LF100LA
|
最大连续充放电电流 |
1C/1C
|
标准充放电电流 |
0.2C/0.2C
|
<p><span style="color: rgb(64, 64, 64);">Introduction of </span><strong style="color: rgb(64, 64, 64);">EVE LiFePO4 100Ah prismatic battery cells</strong></p><p><span style="color: rgb(64, 64, 64);">Model Name: LF100LA</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Capacity: 100Ah</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Voltage: 3.2V</span></p><p><span style="color: rgb(64, 64, 64);">Cycle Life: 5000 Cycles</span></p><p><span style="color: rgb(64, 64, 64);">Data Sources: EVE's Laboratory</span></p><p><span style="color: rgb(64, 64, 64);">Advantages of</span><strong style="color: rgb(64, 64, 64);"> </strong><span style="color: rgb(64, 64, 64);">EVE </span><strong style="color: rgb(64, 64, 64);">3.2V 100Ah LiFePO4 battery </strong><span style="color: rgb(64, 64, 64);">LF100LA</span><strong style="color: rgb(64, 64, 64);"> </strong></p><p><span style="color: rgb(64, 64, 64);">1. Automated: Automated production.</span></p><p><span style="color: rgb(64, 64, 64);">2. Ultra-Safe: Explosion-proof/no leakage.</span></p><p><span style="color: rgb(64, 64, 64);">3. Stable: Low IR/High CR/Discharge steadily.</span></p><p><span style="color: rgb(64, 64, 64);">4. Customized Custom-made: EVE offers customization service with customer demand.</span></p><p><span style="color: rgb(64, 64, 64);">5. Super Long: </span><strong style="color: rgb(64, 64, 64);">LiFePO4 100Ah prismatic battery cells</strong><span style="color: rgb(64, 64, 64);"> have an</span><strong style="color: rgb(64, 64, 64);"> </strong><span style="color: rgb(64, 64, 64);">ultra-long life cycle.</span></p><p><span style="color: rgb(64, 64, 64);">6. Environmentally Friendly: </span><strong style="color: rgb(64, 64, 64);">LiFePO4 100Ah prismatic battery cells</strong><span style="color: rgb(64, 64, 64);"> have passed environmental system certification.</span></p><p><span style="color: rgb(64, 64, 64);">Specifications of </span><strong style="color: rgb(64, 64, 64);">EVE 3.2V 100Ah LiFePO4 battery </strong><span style="color: rgb(64, 64, 64);">LF100LA</span></p><p><span style="color: rgb(64, 64, 64);">Model: LF100LA</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Voltage: 3.20V</span></p><p><span style="color: rgb(64, 64, 64);">Capacity: 100Ah</span></p><p><span style="color: rgb(64, 64, 64);">Nominal weight: 1980±50g</span></p><p><span style="color: rgb(64, 64, 64);">Dimension: H: 118.5±0.5mm W: 160.0±0.8mm T: 50.1±0.5mm</span></p><p><span style="color: rgb(64, 64, 64);">Applications of </span><strong style="color: rgb(64, 64, 64);">3.2V 100Ah LiFePO4 battery </strong><span style="color: rgb(64, 64, 64);">LF100LA</span></p><p><span style="color: rgb(64, 64, 64);">EVE</span><strong style="color: rgb(64, 64, 64);"> </strong><span style="color: rgb(64, 64, 64);">LF100LA is wildly applicable to various scenarios, such as new energy passenger cars, Telecom ESS, Grid ESS, etc.</span></p>
