LF105

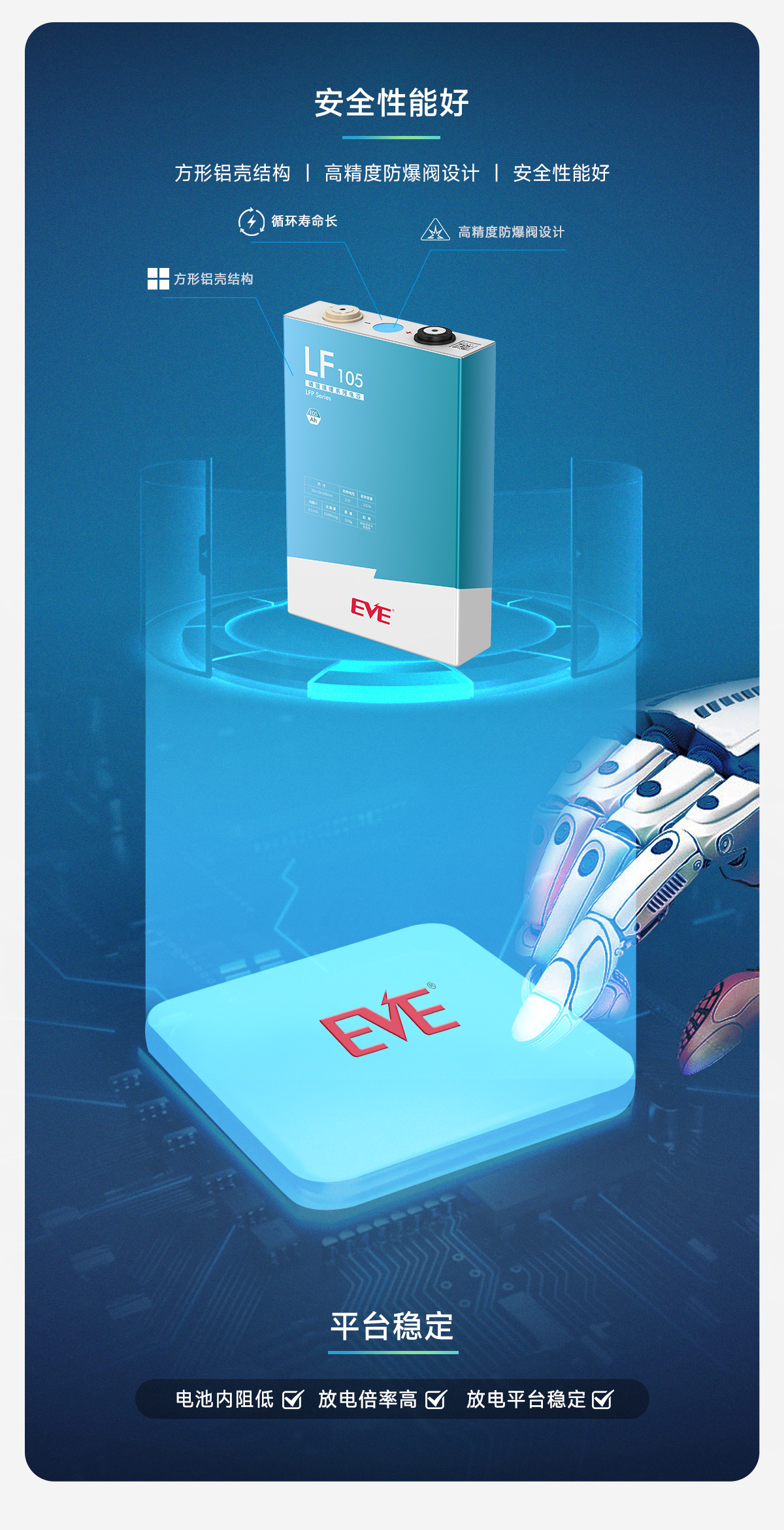

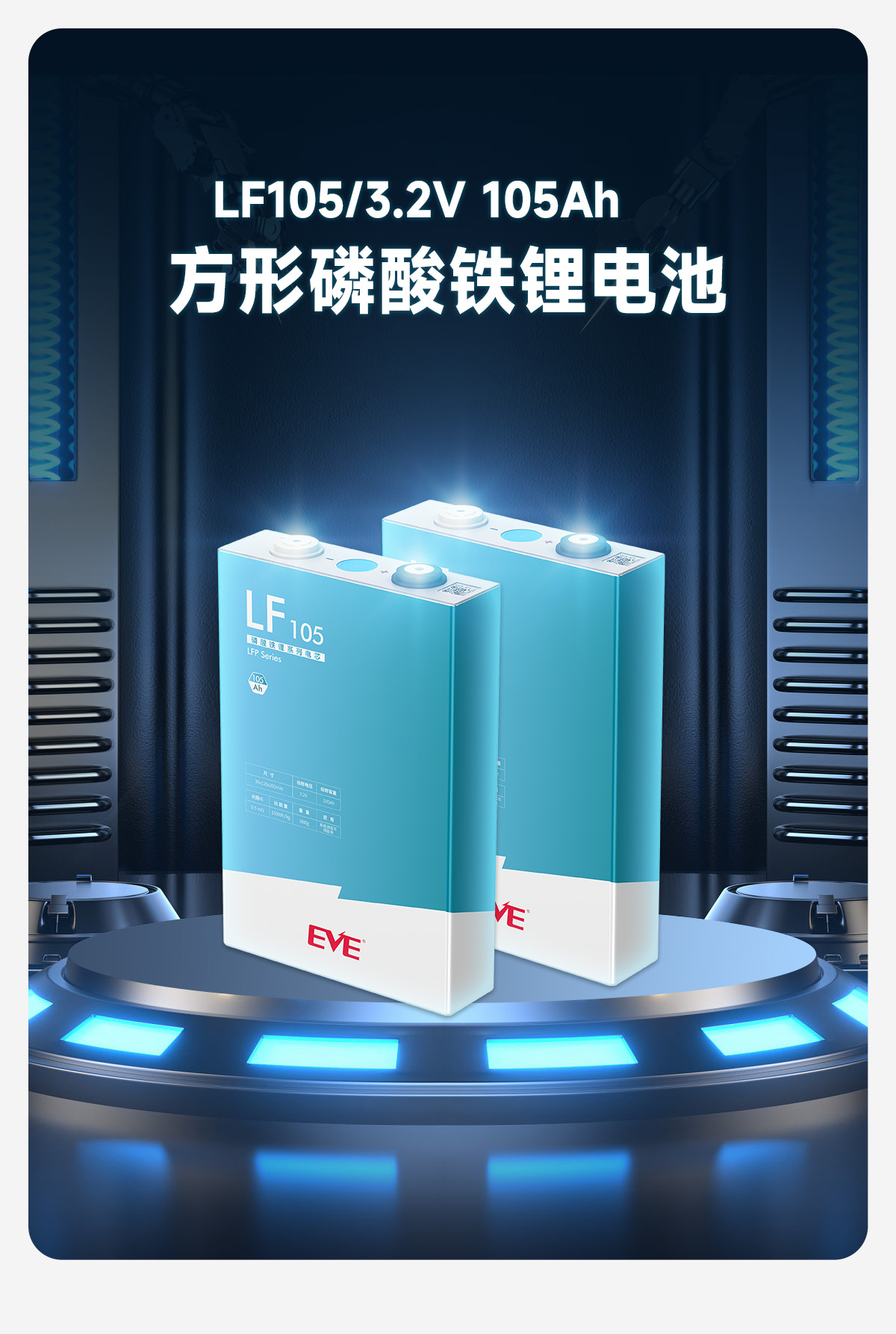

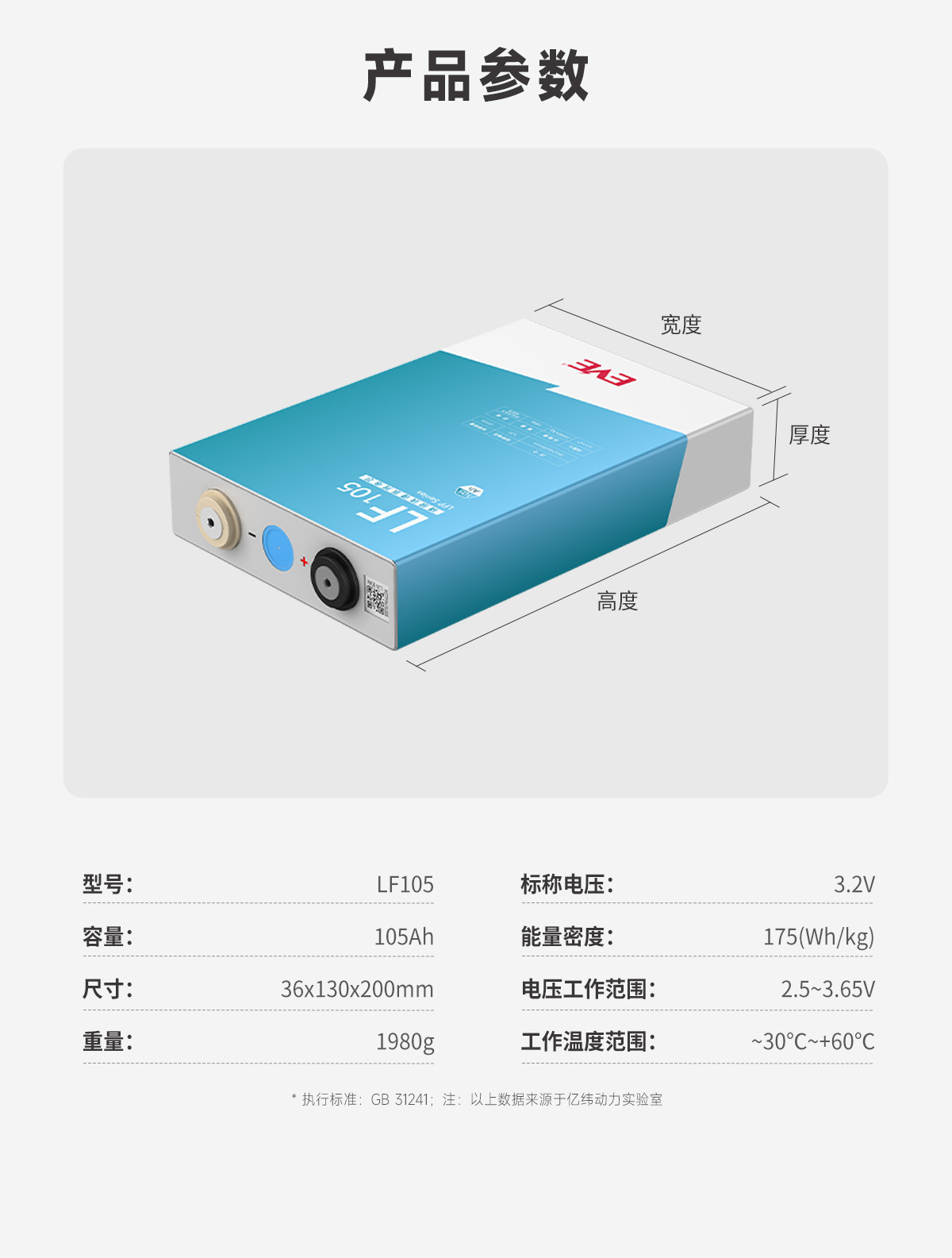

EVE亿纬锂能LF105方形磷酸铁锂电池3.2V大单体锂电池105Ah三轮车乘用车
- 电芯型号: LF105
- 标称容量: 105Ah
- 标称电压: 3.2V
- 数据来源: 亿纬动力实验室
规格参数 |
标称容量 |
105Ah
|

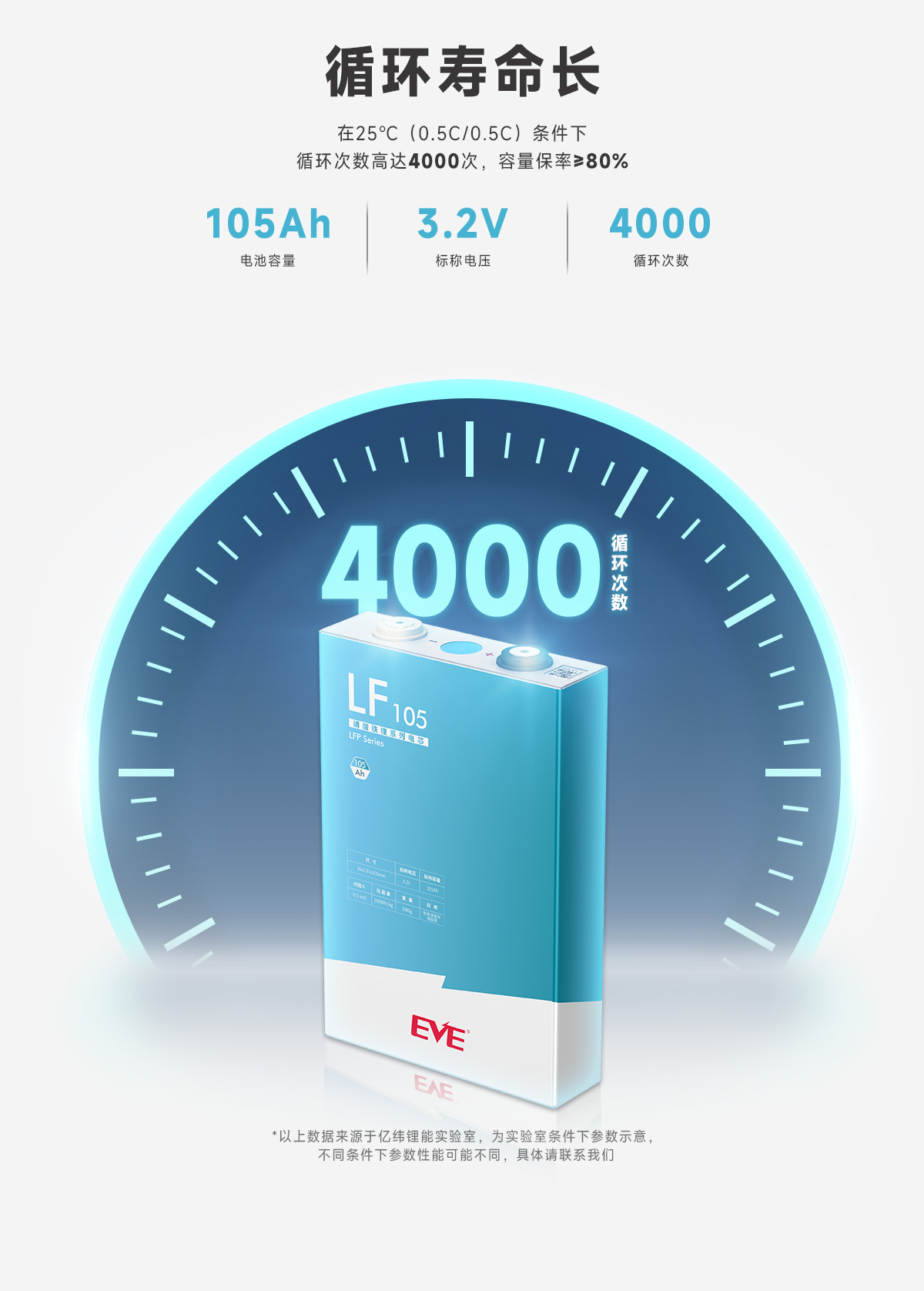

循环次数 |
4000次
|
放电电压 |
2.5V
|
型号 |
LF105
|
标称电压 |
3.2V
|
充电电压 |
3.65V
|
充电工作温度 |
-10~60℃
|
放电工作温度 |
-35~65 ℃
|
重量 |
1980±60g
|
存储温度 |
-20~45℃
|
产品尺寸 |
高*长*宽=200.5±0.5mm*130.3±0.5mm*36.35±0.5mm
|
充放电电流 |
0.5C/0.5C
|
持续最大充放电电流 |
1C/1C
|
初始内阻 |
0.32mΩ±0.05mΩ
|
<p><span style="color: rgb(64, 64, 64);">Introduction of </span><strong style="color: rgb(64, 64, 64);">EVE LF105</strong></p><p><span style="color: rgb(64, 64, 64);">Model Name: LF105</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Capacity: 105Ah</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Voltage: 3.2V</span></p><p><span style="color: rgb(64, 64, 64);">Cycle Life: 4000 Cycles</span></p><p><span style="color: rgb(64, 64, 64);">Data Sources: EVE's Laboratory</span></p><p><span style="color: rgb(64, 64, 64);">Advantages of</span><strong style="color: rgb(64, 64, 64);"> EVE LF105</strong></p><p><span style="color: rgb(64, 64, 64);">1. Automated: Automated production.</span></p><p><span style="color: rgb(64, 64, 64);">2. Ultra-Safe: Explosion-proof/no leakage.</span></p><p><span style="color: rgb(64, 64, 64);">3. Stable: Low IR/High CR/Discharge steadily.</span></p><p><span style="color: rgb(64, 64, 64);">4. Customized Custom-made: EVE offers customization service with customer demand.</span></p><p><span style="color: rgb(64, 64, 64);">5. Super Long: </span><strong style="color: rgb(64, 64, 64);">EVE LF105 </strong><span style="color: rgb(64, 64, 64);">battery has an</span><strong style="color: rgb(64, 64, 64);"> </strong><span style="color: rgb(64, 64, 64);">ultra-long life cycle.</span></p><p><span style="color: rgb(64, 64, 64);">6. Environmentally Friendly: </span><strong style="color: rgb(64, 64, 64);">EVE LF105 </strong><span style="color: rgb(64, 64, 64);">has passed environmental system certification.</span></p><p><span style="color: rgb(64, 64, 64);">Specifications of </span><strong style="color: rgb(64, 64, 64);">EVE LF105 battery</strong></p><p><span style="color: rgb(64, 64, 64);">Model: LF105</span></p><p><span style="color: rgb(64, 64, 64);">Nominal Voltage: 3.20V</span></p><p><span style="color: rgb(64, 64, 64);">Capacity: 105Ah</span></p><p><span style="color: rgb(64, 64, 64);">Nominal weight: 1980±60g</span></p><p><span style="color: rgb(64, 64, 64);">Dimension: H: 200.5±0.5mm W: 130.3±0.3mm T: 36.35±0.5mm</span></p><p><span style="color: rgb(64, 64, 64);">Applications of </span><strong style="color: rgb(64, 64, 64);">EVE LF105</strong></p><p><strong style="color: rgb(64, 64, 64);">EVE LF105</strong><span style="color: rgb(64, 64, 64);"> is wildly applicable to various scenarios, such as new energy passenger cars, new energy ships, etc.</span></p>
