21700 40PLHOT
EVE 21700 40PL cylindrical NCM cell 3.6V 4000mAh full-rate battery power tools/gardening tools
-
4000 Nominal Capacity(mAh)
-
3.60 Nominal voltage(V)
-
400 Nominal Cycles(times)
-
223 Energy density (Wh/kg)
-
67Max Weight (g)
-
≤5 AC internal resistance (mΩ)
Application Scenario
Vacuum cleaners,drills,lawn mowers,power tools,garden tools
Product Certification
Origin of Shipment：
China Warehouse、
EU Warehouse (3-7 days) -
Low self-discharge rate
-
High security
-
Low internal resistance
-
High capacity
-
High discharge rate
-
Long cycle life
-
High-engery density
-
Fast charging
-

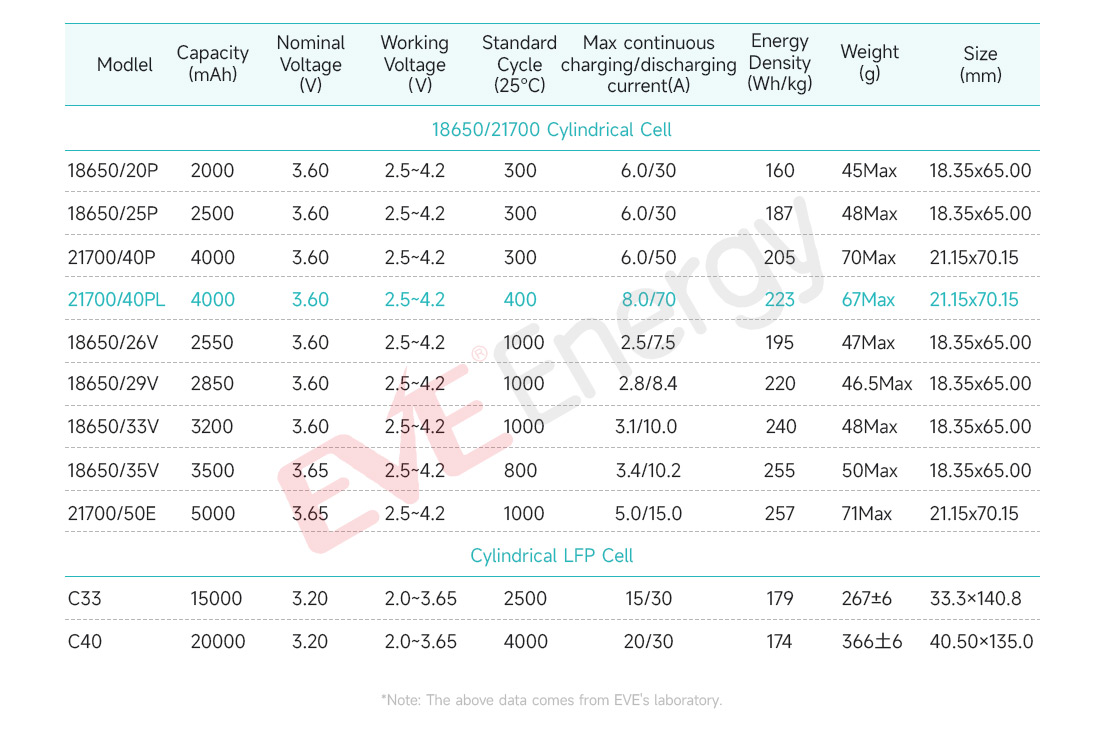

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-

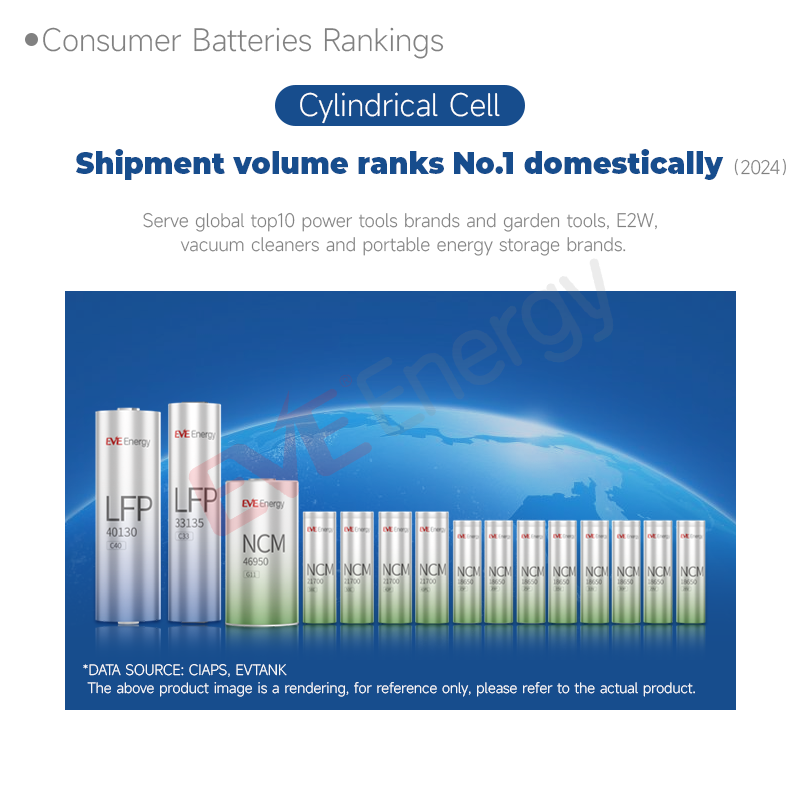

Top 4 Cylindrical Battery Shipments in 2024Serve global top10 power tools brands and garden tools, E2W, vacuum cleaners and portable energy storage brands
-

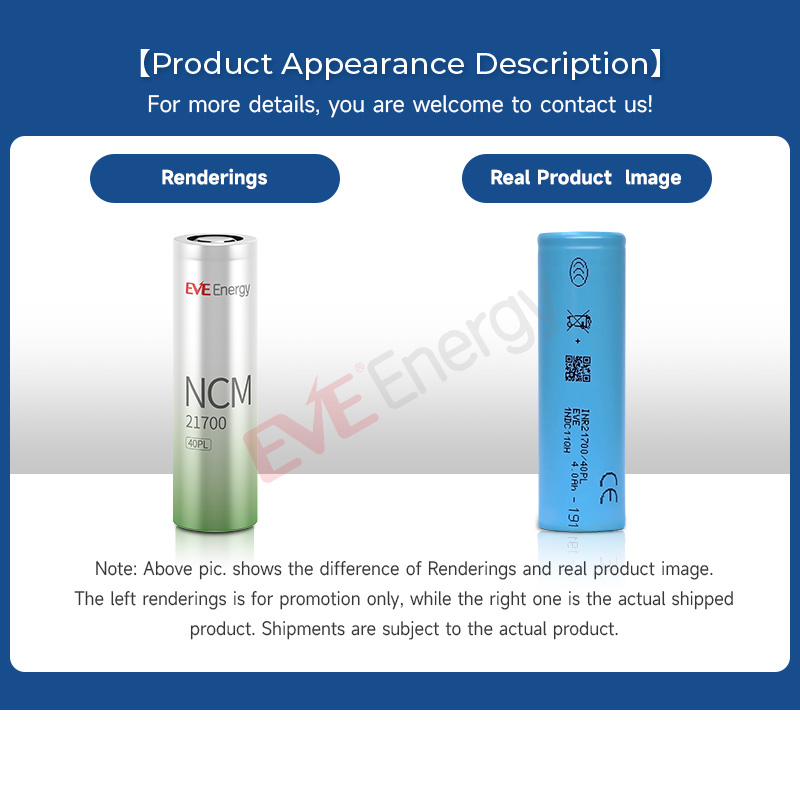

21700/40PL 4000mAh 3.60VHigh Capacity,High Discharge rate
High Discharge rateSupports up to 70A continuous discharge
-
Fast chargingSupports up to 8A charging
Wide temperatureOperable from -20°C to 60°C
High-energy densityUp to 223 Wh/kg
-
Comprehensive cylindrical battery solutionsIndustry Applications: Power Tool,Garden Tool,Vacuum Cleaner,Sweeping Robot;Models:21700 40P,18650 25P,20P,15P
-

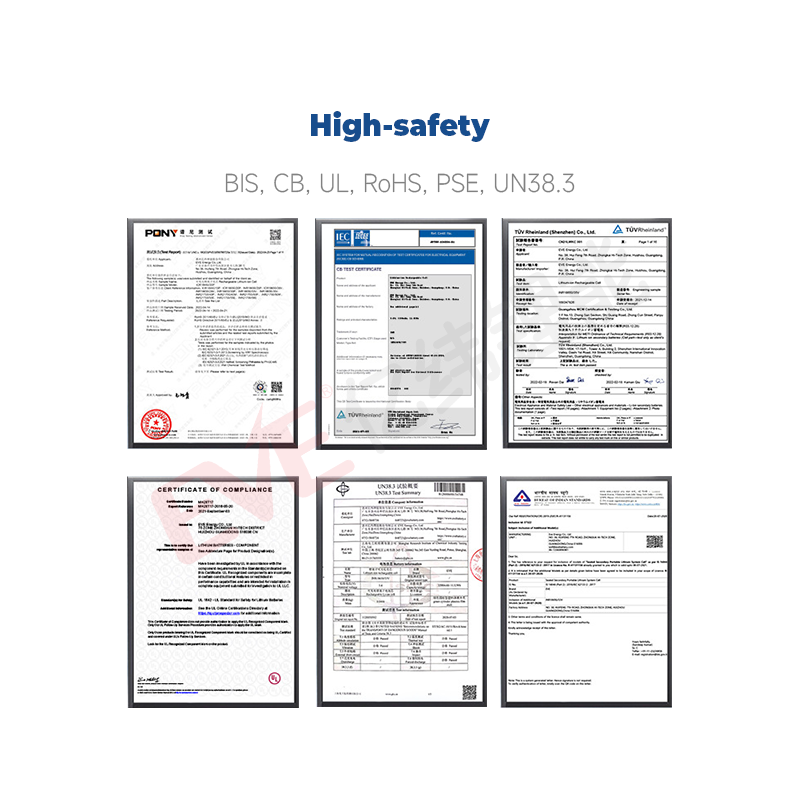

Fully certifiedCE,BIS,CB,UL,RoHS,PSE,UN38.3
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-

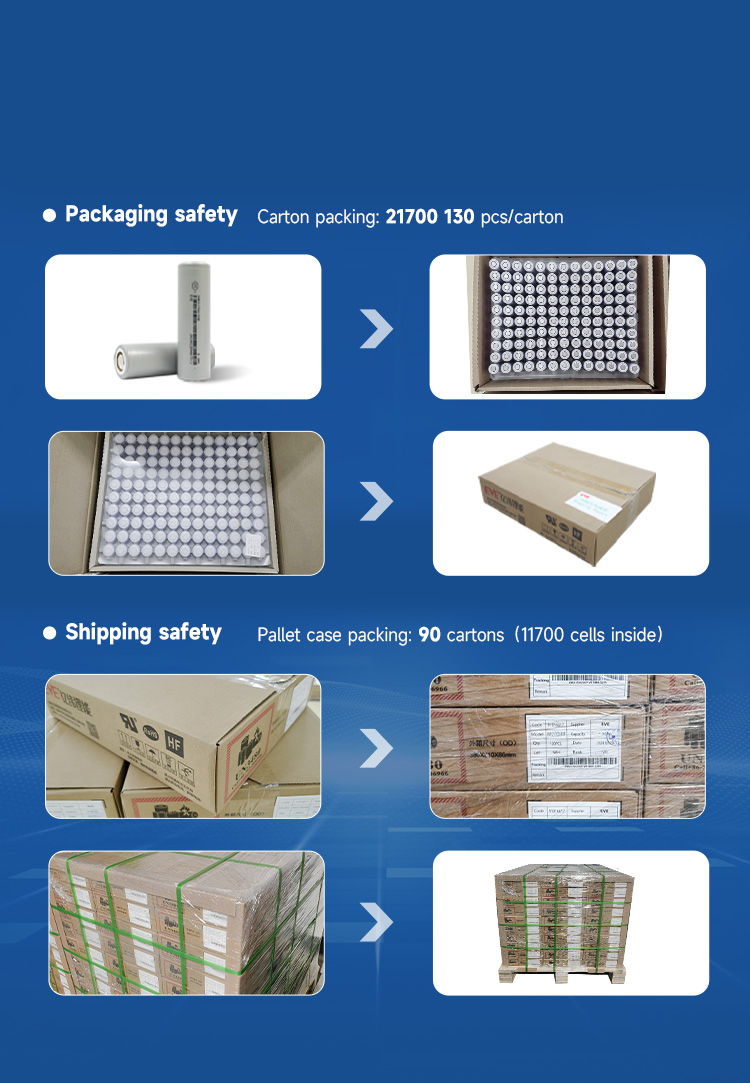

Packaging/Shipping SafetyCartom packing:130 pcs/carton丨Wooden case packing:90pcs carton(11700pcs cells inside)
-

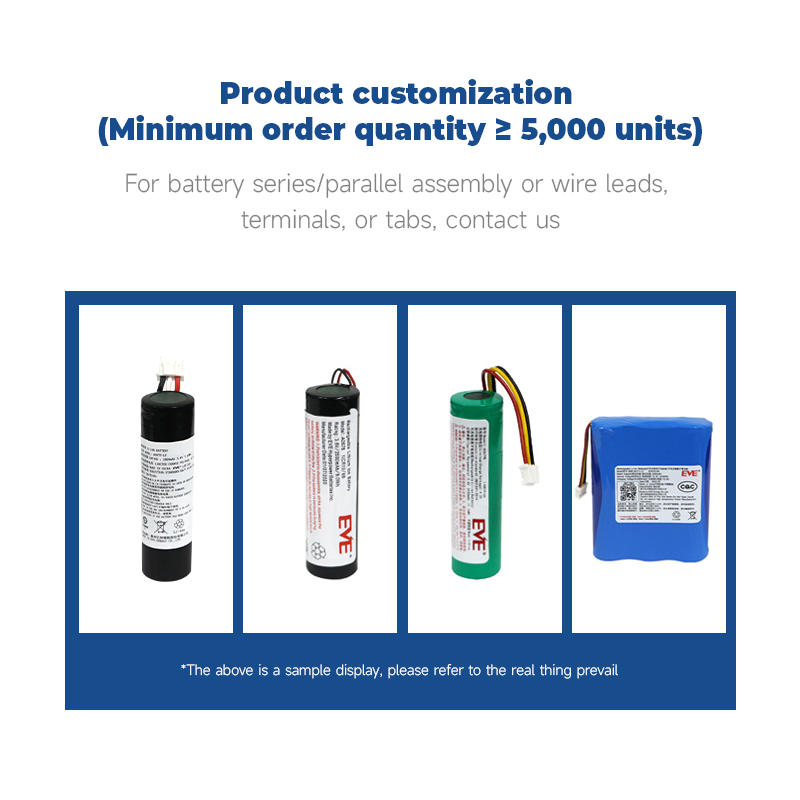

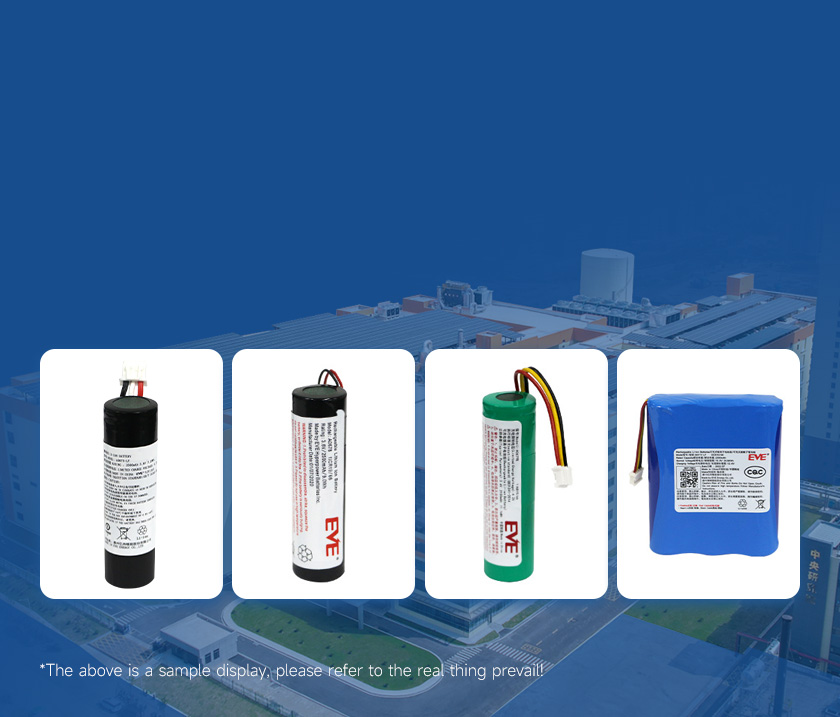

Product customization (Minimum order quantity ≥ 5,000 units)For battery series/parallel assembly or wire leads,terminals,or tabs,contact us
Packaging Display21700 Battery Cells-130 PCS Pack Display
Specifications
| Model | 21700/40PL |
| Nominal Voltage | 3.6V |
| Nominal capacity | 4000mAh |
| Application scenario | Power tools, garden tools, electric two-wheelers, vacuum cleaners, sweeping robots |
| Standard charge | 2.0A constant current charge to 4.20±0.05V, constant voltage charge cutoff current 100mA |
| Fast charging | 8A constant current charge to 4.20±0.05V, constant voltage charge cutoff current 100mA |
| Standard discharge | 0.8A constant current discharge to 2.50V cutoff |
| Charge/discharge voltage range | 2.50V~4.20V |
| Battery weight | 67g |
| Battery Size | Height: 70.15±0.15mm, Diameter: 21.15±0.10mm |
| AC internal resistance | ≤5mΩ |
| Maximum continuous charging/discharging current | 8.0/70A |
