M21HOT
EVE M21 square ternary battery 3.62V 58Ah power battery cell tricycle low-speed four-wheeler power replacement
-
3.62 Nominal Voltage(V)
-
58 Nominal Capacity(Ah)
-
3000 Nominal Cycles(times)
-
860±15 Weight(g)
-
244 Energy Density(Wh/kg)
-
95.2*148.6*26.7 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars
Product Certification
Origin of Shipment：
China Warehouse -
Long cycle life
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
-

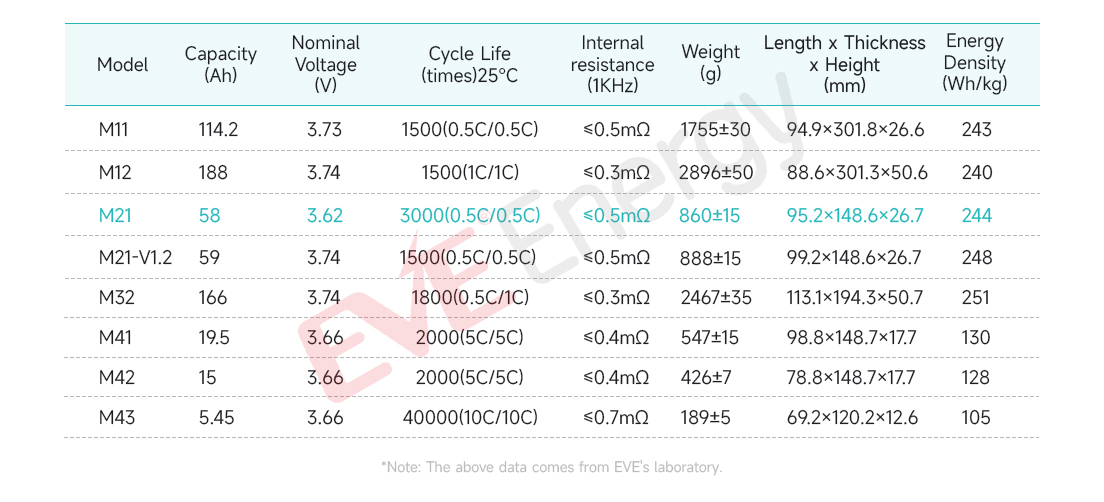

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 5 Power Battery Installed Capacity in China by 2024Serving many international first-class automobile enterprises
-
M21 58Ah 3.62VHigh Reliability Long Cycle Life
Cycling up to 3000 times;Capacity Energy retention rate≥70%At(25°C 0.5C/0.5C)
-
Product CertificationMeet UL1642,UN38.3,ATEX,CE,ISO and other certifications
-
High energy densityNCM material system with high energy density and high power storage capacity
-
Excellent multiplier discharge performanceContinuous discharge multiplier(25℃≥60S)
High safety performanceHighly reliable explosion-proof valve,anti-short-circuit structural design and high-security isolation membrane coating process,high safety performance
Intelligent manufacturingContinuously promote informationization and digitalization to build a"lighthouse factory"
-
Passenger Vehicle SolutionsEntered the supply chain of international first-class passenger car enterprises and reached strategic cooperation with domestic new car-making forces
Specifications
| Model Name | M21 |
| Nominal Capacity | 58Ah |
| Nominal Voltage | 3.62V |
| Nominal Cycles(times) | 3000 |
| Initial IR | ≤0.5mΩ |
| Limit Charge Voltage | 4.25V |
| Standard charge/Discharge curren | 58A （1C） |
| Weight(g) | 860±15 |
| Length x Width x Height(mm) | 95.2*148.6*26.7 |
| Charging Temperature | -20~55℃ |
| Discharging Temperature | -30~55℃ |

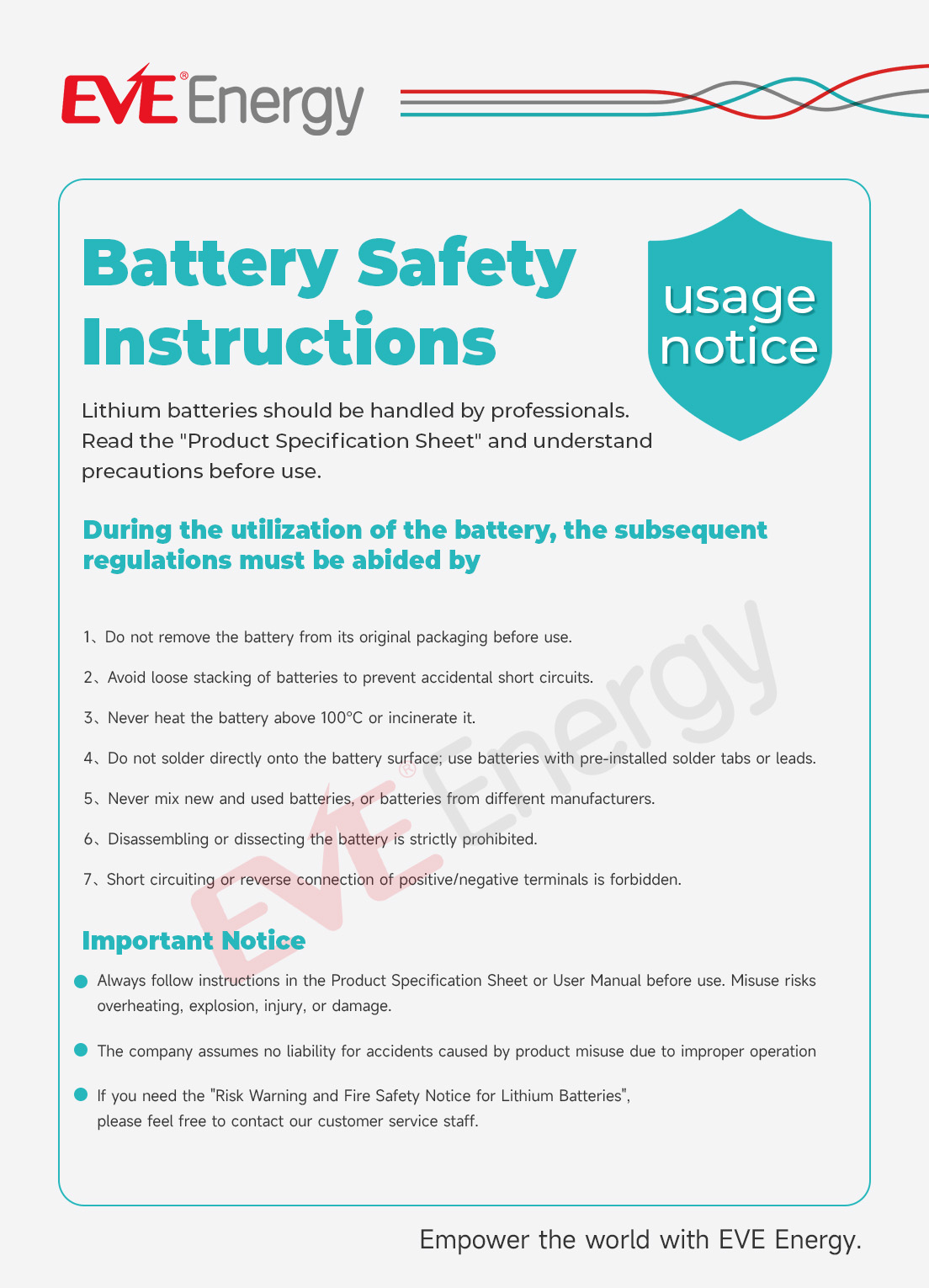

Safety Instructions
Have questions?？Get help from a EVE expert
