M11
EVE M11 square ternary battery 3.73V114.2Ah power battery cell parking air-conditioning tricycle
-
3.73 Nominal voltage(V)
-
114.2 Nominal capacity(Ah)
-
1500 Nominal Cycles(times)
-
1755±30 Weight(g)
-
243 Energy Densityr(Wh/kg)
-
94.9*301.8*26.6 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars
Product Certification
Origin of Shipment：
China Warehouse -
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 5 Power Battery Installed Capacity in China by 2024Serving many international first-class automobile enterprises
-
M11 114.2Ah 3.73VHigh Reliability Long Cycle Life
Cycling up to 1500 times;Capacity Energy Retention Rate≥70%At(25°C 0.5C/1C)
-
Product CertificationMeet UL1642,UN38.3,ATEX,CE,ISO and other certifications
-
High energy densityNCM material system with high energy density and high power storage capacity
-
Excellent multiplier discharge performanceContinuous discharge multiplier(25℃≥60S)
High safety performanceHighly reliable explosion-proof valve,anti-short-circuit structural design and high-security isolation membrane coating process,high safety performance
Intelligent manufacturingContinuously promote informationization and digitalization to build a"lighthouse factory"
-
Passenger Vehicle SolutionsEntered the supply chain of international first-class passenger car enterprises and reached strategic cooperation with domestic new car-making forces

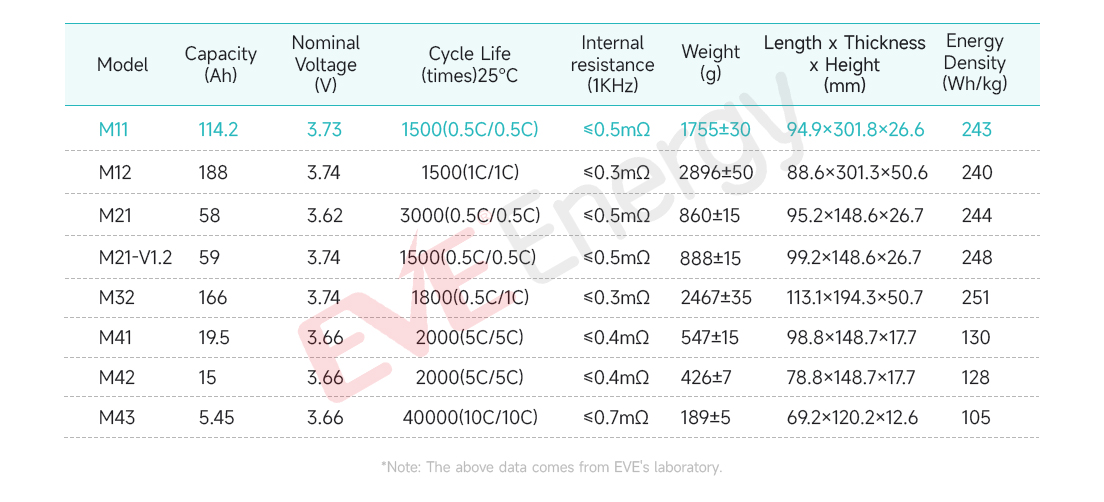

Specifications
| Model Name | M11 |
| Nominal Capacity | 114.2Ah |
| Nominal Voltage | 3.73V |
Nominal Cycles(times) | 1500 |
| Initial IR | ≤0.5mΩ |
| Weight(g) | 1755±30 |
| Standard Charge/Discharge Ratio | 0.33C/0.33C |
| Energy Ensityr(Wh/kg) | 243 |
| Length x Width x Height(mm) | 94.9*301.8*26.6 |
| Charging Temperature | 0~50℃ |
| Discharging Temperature | -30~ 55℃ |

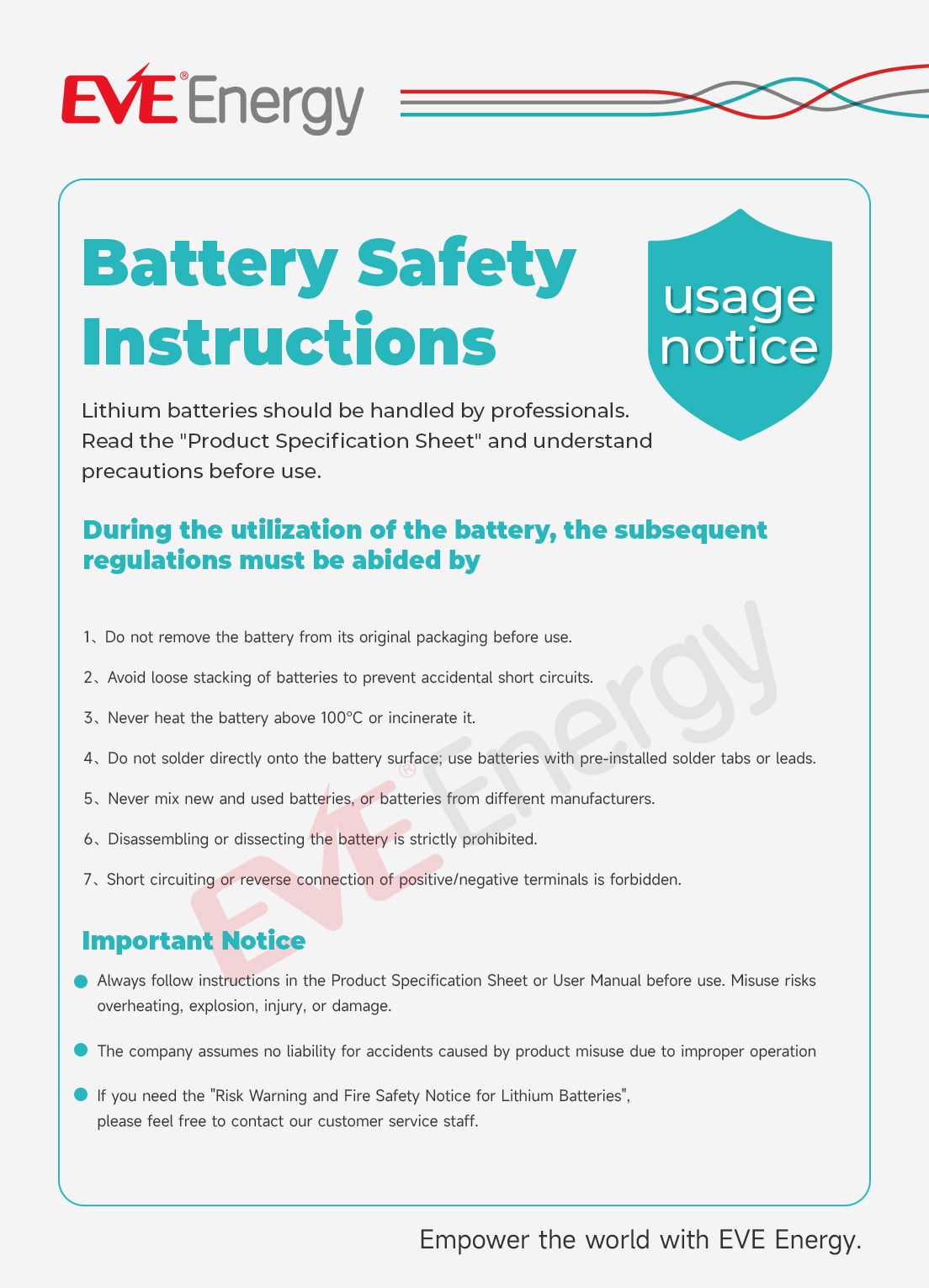

Safety Instructions
Have questions?？Get help from a EVE expert
