LF304HOT

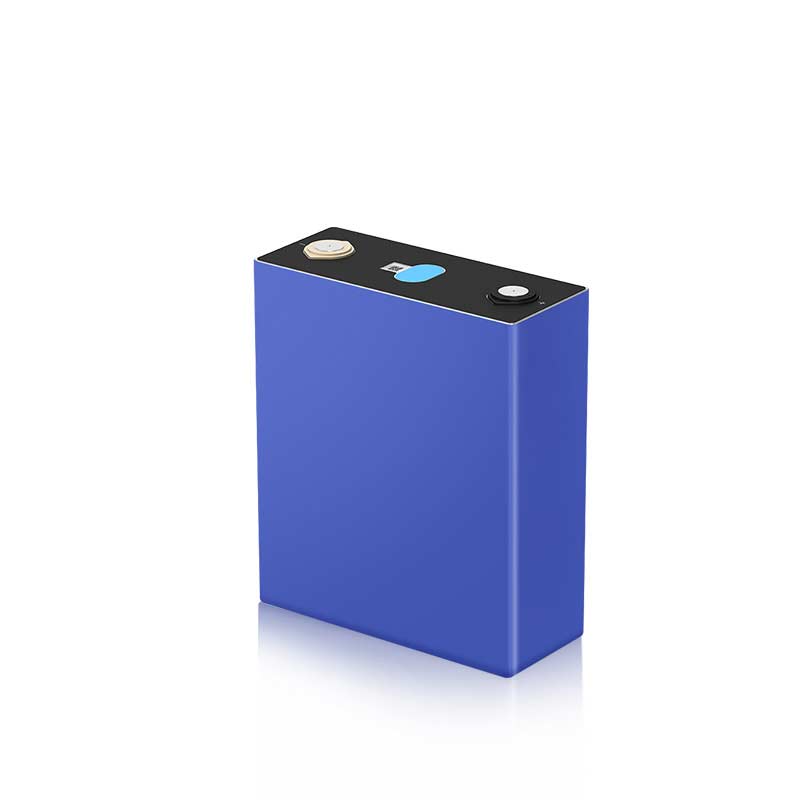

EVE Lithium Ion LF304 Square Lithium Iron Phosphate Battery 3.2V304Ah Power Battery Commercial Vehicle Engineering Machinery Parking Air Conditioner
-
304 Nominal capacaity(Ah)
-
3.2 Nominal voltage(V)
-
4000 Nominal Cycles(times)
-
5450+164 Weight(g)
-
173.7*71.7*207.2 Size(mm)
-
0.5C/0.5C Charge/Discharge multiplier
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
China Warehouse、
EU Warehouse (3-7 days) -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Full Life Cycle
-

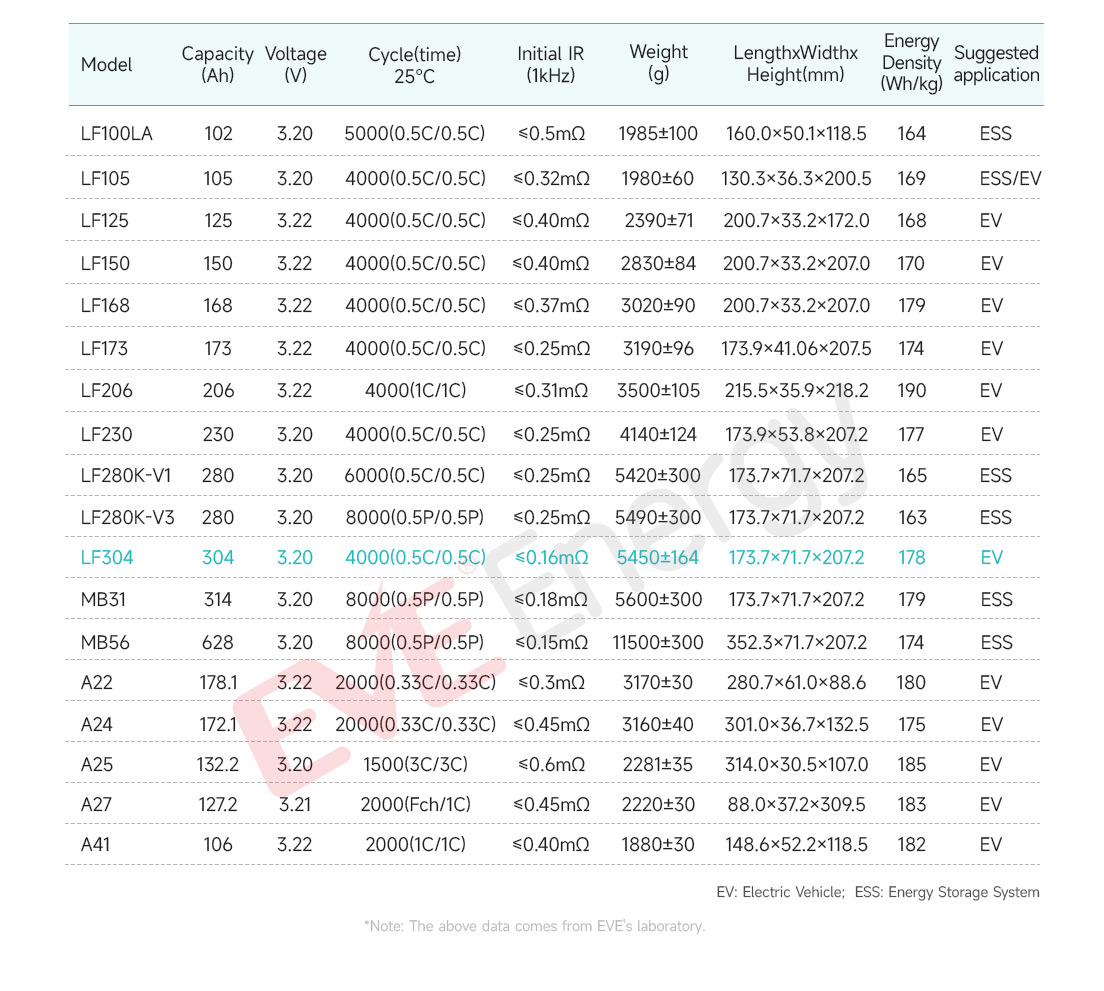

Product Selection
-

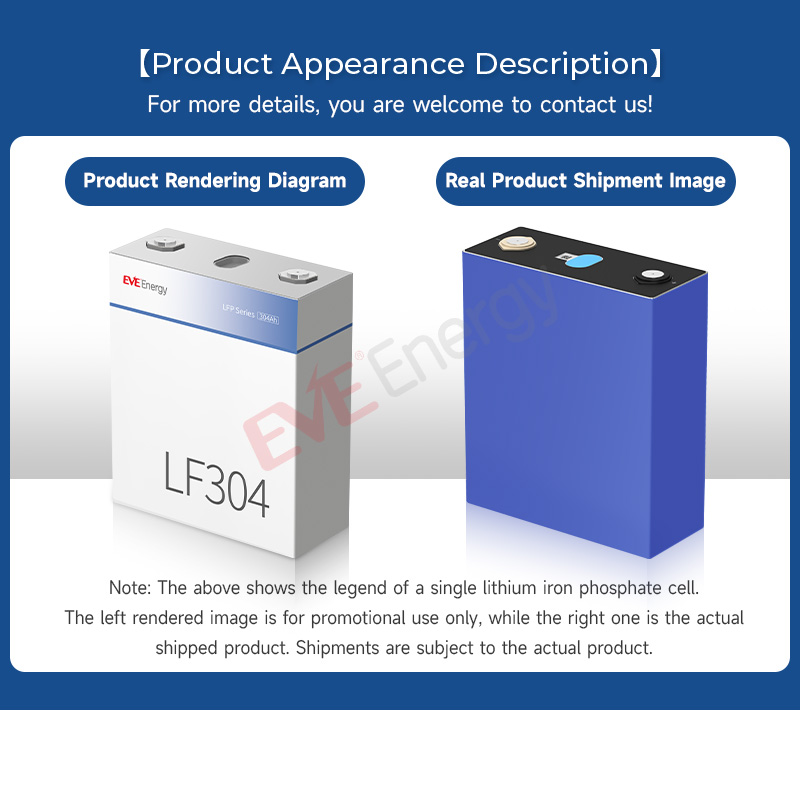

Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 2 Global Medium and Heavy Commercial Vehicle Installed Capacity in 2024Entered into cooperation with global well-known enterprises to build a new platform for energy storage
-
LF304 304Ah 3.2VHigh Capacity Long Cycle
Up to 4000 cycless;80%SOHUnder the condition of(25℃0.5C/0.5C)
-
Standard platforms:Comprehensive solutions from cell to BESSApplication Area:Excavators,Heavy trucks,Forklifts,Passenger cars
-

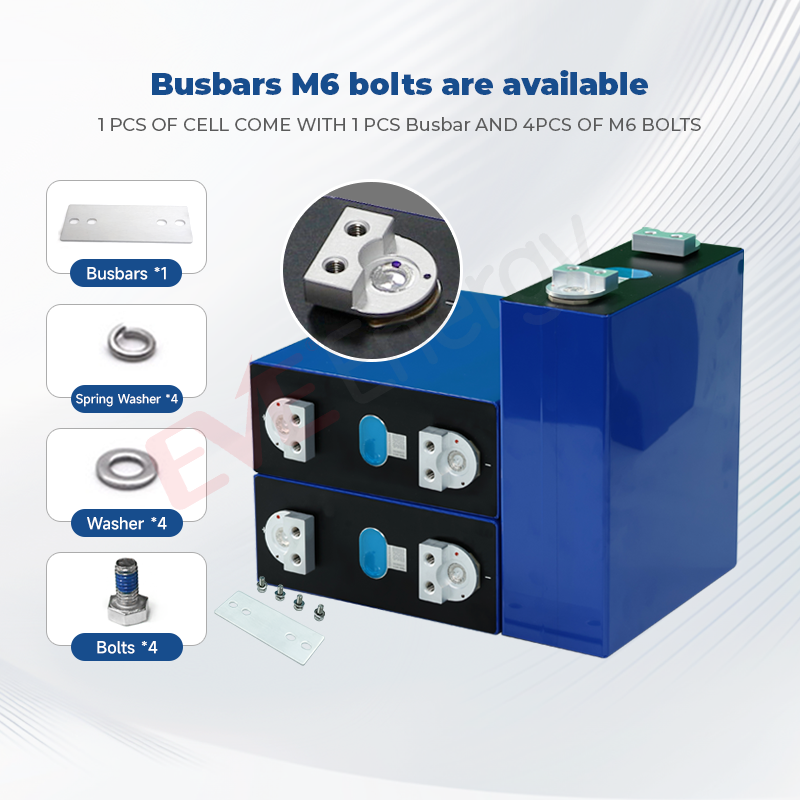

Busbars&M6/M4 bolts are availableFor more information,please contact online customer service
-
High performanceLow internal resistance of battery cell,high discharge rate,stable charge/discharge,long cycle life
High consistencyIntelligent factory with highly automated production lines and high-precision equipment to ensure battery consistency
Safe and reliableOver 2856 cell manufacturing control points,with perfect design process and testing system
-
Application CasesPassenger Car Solutions,Commercial Vehicle Solutions,Engineered Power Solutions
-
Fully certifiedObtain GB,CE,IEC,UL,et al
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCartom packing:4 pcs/carton丨Wooden case packing:30pcs carton(120pcs cells inside)
Specifications
| Model Number | LF304 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 304Ah |
| Nominal Cycles(times) | 4000 |
| Weight(g） | 5450 |
| Width*Thickness*Height(mm) | 173.7*71.7*207.2 |
| Standard charge/Discharge current | 152A/152A |
| Initial IR | 0.16mΩ±0.05mΩ |
| Charging Temperature | -10~65 ℃ |
| Discharging Temperature | -35~65 ℃ |

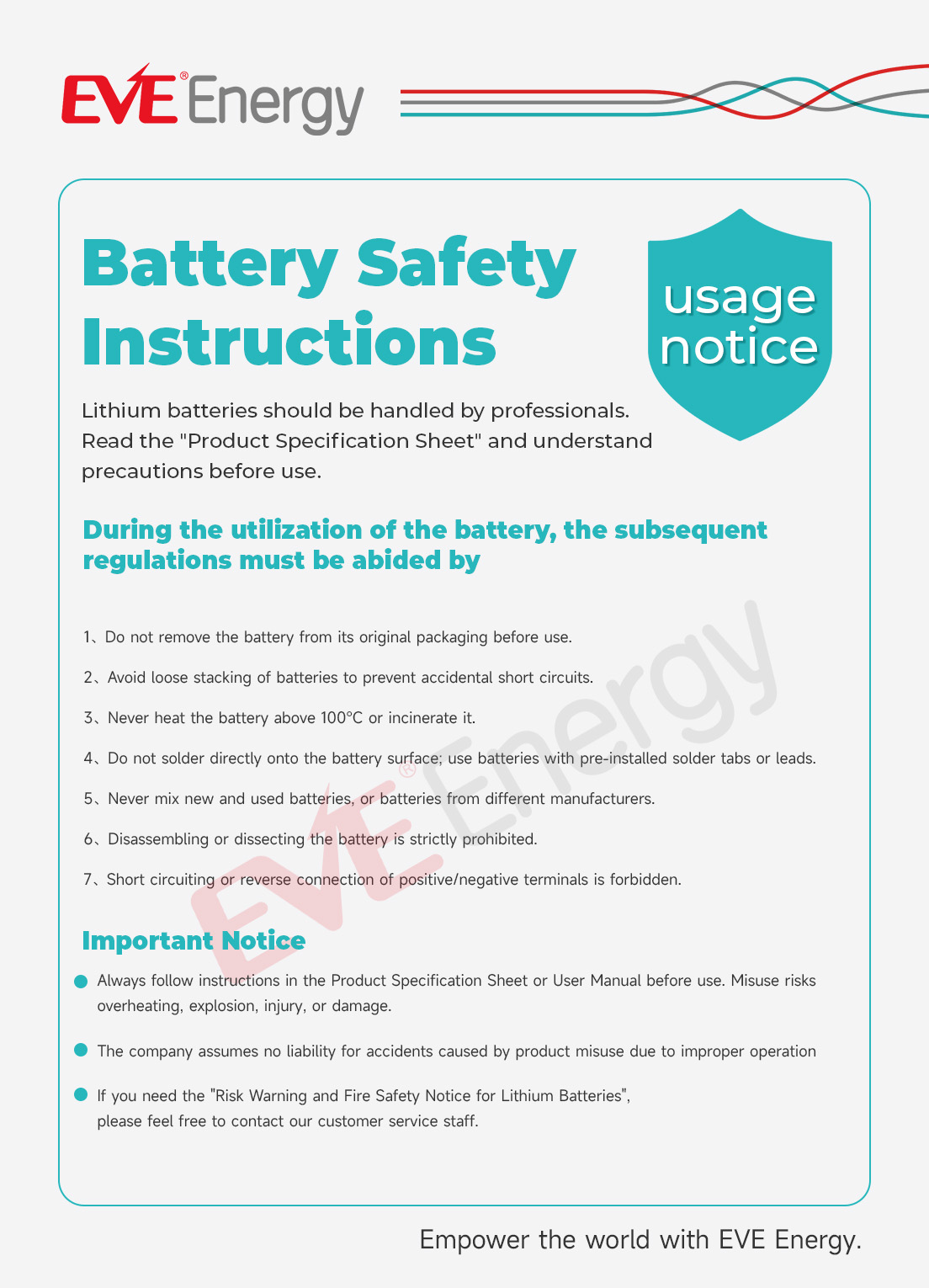

Safety Instructions
