M42
EVE Li-power M42 square ternary battery 3.66V15Ah power battery cell two-wheeled vehicles tricycle
-
3.66 Nominal voltage(V)
-
15 Nominal capacity(Ah)
-
2000 Nominal Cycles(times)
-
426±7 Weight(g)
-
128 Energy densityr(Wh/kg)
-
78.8*148.7*17.7 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars
Product Certification
Origin of Shipment：
China Warehouse -
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 5 Power Battery Installed Capacity in China by 2024Serving many international first-class automobile enterprises
-
M42 15Ah 3.66VHigh Reliability Long Cycle Life
Cycling up to 2000 times;Capacity Energy Retention Rate≥70%At(25°C 0.5C/0.5C)
-
Product CertificationMeet UL1642,UN38.3,ATEX,CE,ISO and other certifications
-
High energy densityNCM material system with high energy density and high power storage capacity
-
Excellent multiplier discharge performanceContinuous discharge multiplier(25℃≥60S)
High safety performanceHighly reliable explosion-proof valve, anti-short-circuit structural design and high-security isolation membrane coating process, high safety performance
Intelligent manufacturingContinuously promote informationization and digitalization to build a"lighthouse factory"
-
Passenger Vehicle SolutionsEntered the supply chain of international first-class passenger car enterprises and reached strategic cooperation with domestic new car-making forces

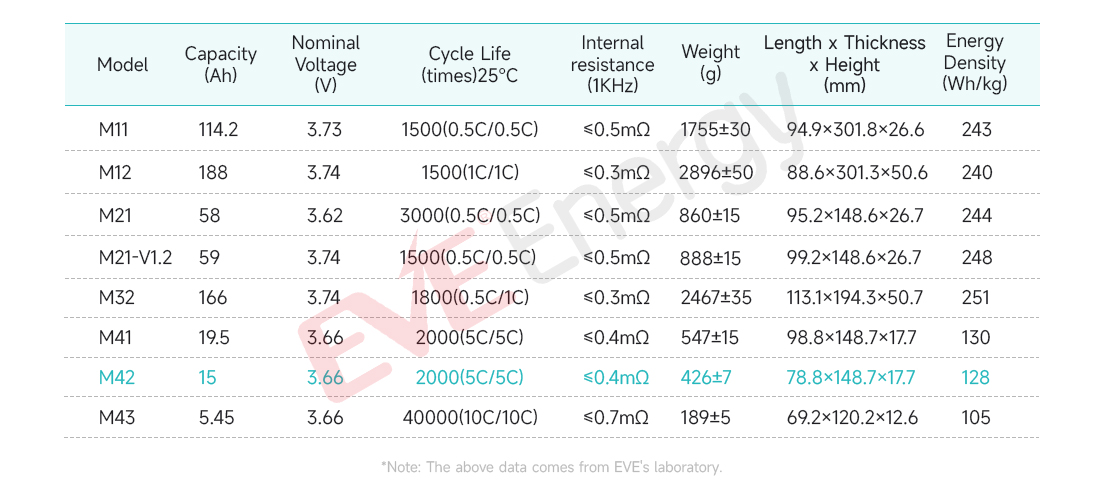

Specifications
| Model Name | M42 |
| Nominal Capacity | 15Ah |
| Nominal Voltage | 3.66V |
| Nominal Cycles(times) | 2000 |
| Initial IR | ≤0.4mΩ |
| Weight(g) | 426±7 |
| Standard Charge/Discharge Ratio | 5C/5C |
| Energy Densityr(Wh/kg) | 128 |
| Length x Width x Height(mm) | 78.8*148.7*17.7 |
| Standard Charging Current | 15A |
| Standard Discharge Current | 15A |

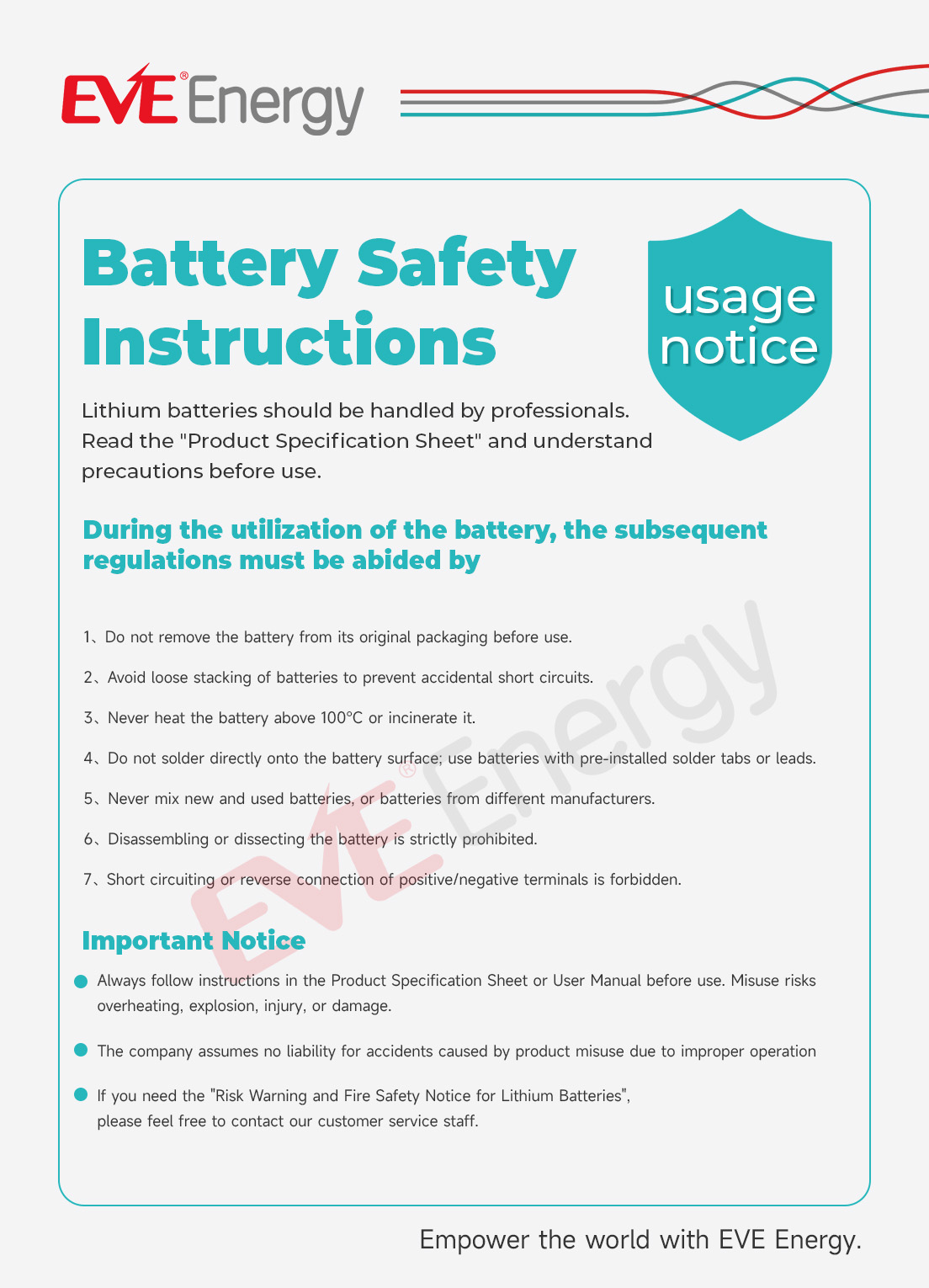

Safety Instructions
